Graphs in C++

What is Graph?

A graph is a non-linear data structure consisting of vertices and edges. The vertices are sometimes also referred to as nodes and the edges are lines or arcs that connect any two nodes in the graph. The graph is denoted by G (V, E).

Adjacent Vertex: Vertices with common edge (E)

Adjacent Edges: Edges with common vertex (V)

Order of Graph: |V| = number of vertices

Size of Graph: |E| = number of edges

Major Types:

1. Directed Graph:

Graph with specific direction.

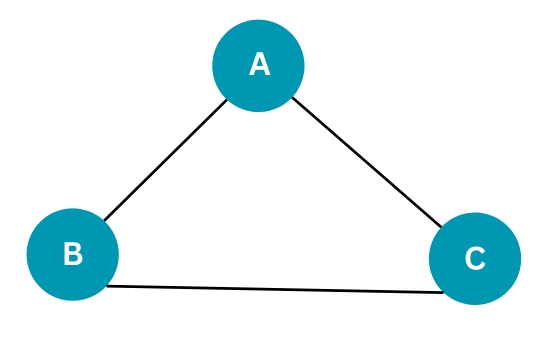

2. Undirected Graph:

Graph with no specified direction.

Traversals in Graph:

1. Breadth-First Search: (BFS)

• Level-wise traversal
• No back-tracking
• Uses Queue's data structure

2. Depth-First Search: (DFS)

• Supports back tracking
• Uses stack data structure

Representation of Graph:

1. Using Adjancey Matrix

2. Using Adjancey List

#include <iostream>
#include <vector>
#include <list>
#include <queue>
#include <stack>
using namespace std;

class Graph {
private:
    int NumberofVertices; // Number of vertices in the graph
    vector<list<int>> AdjanceyList; // Adjacency list representation of the graph

public:
    // Constructor to initialize the graph with V vertices
    Graph(int V) {
        this->NumberofVertices = V; // Set the number of vertices
        this->AdjanceyList.resize(NumberofVertices); // Resize the adjacency list
    }

    // Function to add an edge from vertex V to vertex W
    void addEdge(int V, int W) {
        AdjanceyList[V].push_back(W); // Add W to V's list
    }

    // BFS traversal from a given starting point
    void BFS(int StartingPoint) {
        vector<bool> visited; // Vector to keep track of visited vertices
        visited.resize(NumberofVertices); // Resize the visited vector to the number of vertices
        for (int i = 0; i < NumberofVertices; i++)
            visited[i] = false; // Initialize all vertices as not visited

        queue<int> q; // Queue for BFS

        visited[StartingPoint] = true; // Mark the starting point as visited
        q.push(StartingPoint); // Enqueue the starting point

        while (!q.empty()) {
            int s = q.front(); // Get the front element from the queue
            cout << s << " "; // Print the current node
            q.pop(); // Remove the front element

            // Get all adjacent vertices of the dequeued vertex s
            // If an adjacent vertex has not been visited, then mark it visited and enqueue it
            for (auto adjVertex : AdjanceyList[s]) {
                if (!visited[adjVertex]) {
                    visited[adjVertex] = true; // Mark the adjacent vertex as visited
                    q.push(adjVertex); // Enqueue the adjacent vertex
                }
            }
        }
    }

    // DFS traversal from a given starting point
    void DFS(int StartingPoint) {
        vector<bool> visited; // Vector to keep track of visited vertices
        visited.resize(NumberofVertices); // Resize the visited vector to the number of vertices
        for (int i = 0; i < NumberofVertices; i++)
            visited[i] = false; // Initialize all vertices as not visited

        stack<int> s; // Stack for DFS

        s.push(StartingPoint); // Push the starting point onto the stack

        while (!s.empty()) {
            int x = s.top(); // Get the top element from the stack
            s.pop(); // Remove the top element

            // If the vertex has not been visited, process it
            if (!visited[x]) {
                cout << x << " "; // Print the current node
                visited[x] = true; // Mark the current node as visited
            }

            // Get all adjacent vertices of the popped vertex x
            // If an adjacent vertex has not been visited, then push it to the stack
            for (auto adjVertex : AdjanceyList[x]) {
                if (!visited[adjVertex]) {
                    s.push(adjVertex); // Push the adjacent vertex onto the stack
                }
            }
        }
    }
};

int main() {
    Graph g(5); // Create a graph with 5 vertices

    // Add edges to the graph
    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 0);
    g.addEdge(1, 3);
    g.addEdge(1, 4);
    g.addEdge(2, 0);
    g.addEdge(2, 3);
    g.addEdge(3, 2);
    g.addEdge(3, 1);
    g.addEdge(3, 4);
    g.addEdge(4, 3);
    g.addEdge(4, 1);

    // Perform BFS traversal starting from vertex 0
    cout << "Breadth First Traversal (starting from vertex 0): ";
    g.BFS(0);

    // Perform DFS traversal starting from vertex 0
    cout << "\nDepth First Traversal (starting from vertex 0): ";
    g.DFS(0);

    // Breadth First Traversal(starting from vertex 0) : 0 1 2 3 4
    // Depth First Traversal(starting from vertex 0) : 0 2 3 4 1

    return 0;
}
